High and Medium Voltage Electrical Systems for offshore and onshore applications
On numerous projects, ODE has overseen the design of overall wind farm electrical architecture, completing high and medium voltage system design from the offshore generation point through to the onshore grid delivery points and including the overall wind farm SCADA and telecoms designs.

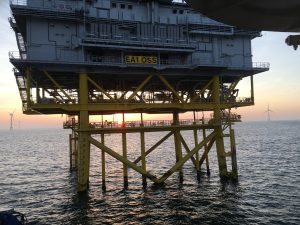

East Anglia ONE Offshore Substation
Our system design experience is enhanced by our wider design knowledge and includes:
- Inter-array cables
- Offshore substations
- Offshore export cables
- Transition joints
- Onshore substations
- Onshore export cables
We also offer the following services across the specialist topic areas:
- Cable sizing and thermal analysis
- Power System Studies
- EMF Analysis and induced voltage
- HV interference with metallic pipelines
Whilst DigSILENT, PowerFactory and CYMCAP are used as standard, we are adaptive and prepared to work with different software requirements dependent on studies or clients.
